Art Audio - Pre Amplifiers

Art Audio > Pre Amplifiers > VPL

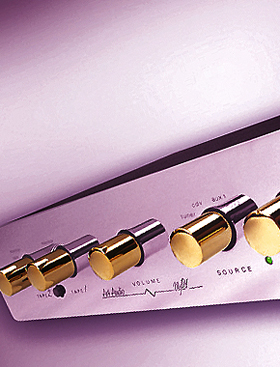

VPL

All amplifying stages are triode and pure class ‘A’

Star Grounding system

Remote switching for short signal paths

Switchable low and high gain stages

6 inputs, 2 outputs, 2 tape monitors

The VP1 Mk II has an identical line section to the VPL but adds a 3-tube MM phono section with cathode followers

Black faceplate with a gold lettering and gold-plated control knobs

$ 2800.00 Back
Quantity:

Type:

Vacuum tube pure class ‘A’ preamplifier
Input Overload:
Sensitivity( 1V out ):
Frequency Response:
Distortion:
Frequency Response:
Noise:
Output:
Tube Complement:

Dimensions:
Weight:

Warranty:
Phono 80mV, Line 10V
Phono 2.5mV into 47K ohms, Line 80mV into 220K ohms
20hz to 20Khz ( Phono ± 0.5 dB., Line ± 0.1 dB.
Phono 0.05%, Line 0.02%
20Hz to 60kHz ± 0.3dB.
Phono 73dB., Line 82dB.
7V rms
VPL: 2 x 12AX7/CV4004
VP1: 5 x 12AX7

18.25" x 10.75" (incl. terminals) x 4" [ W x D x H ]
21 lbs.

3 years parts and labor/90 days on tubes
