Art Audio > Pre Amplifiers > Dual Mono VPS

View additional images

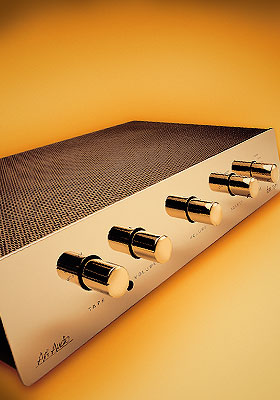

Dual Mono VPS

The VPS was built around the strength of our long-standing VPL.
Equally dynamic and transparent, the VPS further brings out the best performance from the Art Audio amplifiers.



The VPS is a dual-mono design and sports updated transformers and tube power supplies.



The results are a natural, spacious midrange and fast and exciting presentation that breath a new life to your favorite music. A greater dynamics lets you enjoy your music even at a lower listening level.

The VPS is

$ 4500.00          Back

Quantity:


All amplifying stages are triode and pure class ‘A’

Dual mono Goldpoint™ stepped attenuators

Dual mono toroid transformers

Star Grounding System

Single gain stage with cathode follower

6 inputs (1 high-level CD, 5 line level), 2 outputs, 1 tape monitor

Low and high gain stages

Remote switching for short signal paths

Separate PCBs for each channel

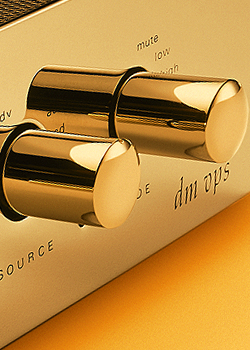

Finished with a non-magnetic, hand-polished stainless steel faceplate and gold or chrome-plated control knobs.


Type:

Vacuum tube dual mono linestage preamplifiers
Max Gain:
Input Overload:
Distortion:
Noise:
Frequency Response:
Output Impedance:
Frequency Response:
Input Sensitivity:
Output Sensitivity:



Tube Complement:

Dimensions:
Weight:

Warranty:
30dB.
4V
< 0.02%
80dB.
20hz to 20Khz ( Phono ± 0.5 dB., Line ± 0.1 dB.
< 10K ohms
5Hz to 35KHz ± 0.5dB.
into 220k ohm: CD 1– 5V at 1W, Line 0.5V
into 220k ohm: CD, Low gain stage 2V
CD, High gain stage 3.8V
Line, low gain stage 1V
Line, high gain stage 1.8V
2 x 6FQ7/6CG7, 2 x 12AX7

18.25" x 10.75" (incl. terminals) x 4" [ W x D x H ]
21 lbs.

2 years parts and labor/90 days on tubes
